two-head-kopli-collector-valve

product code	size	number in package	Quantity in Carton
45022	16×1/2	12	48
45024	20×1/2	12	48
45044	25×3/4	8	32

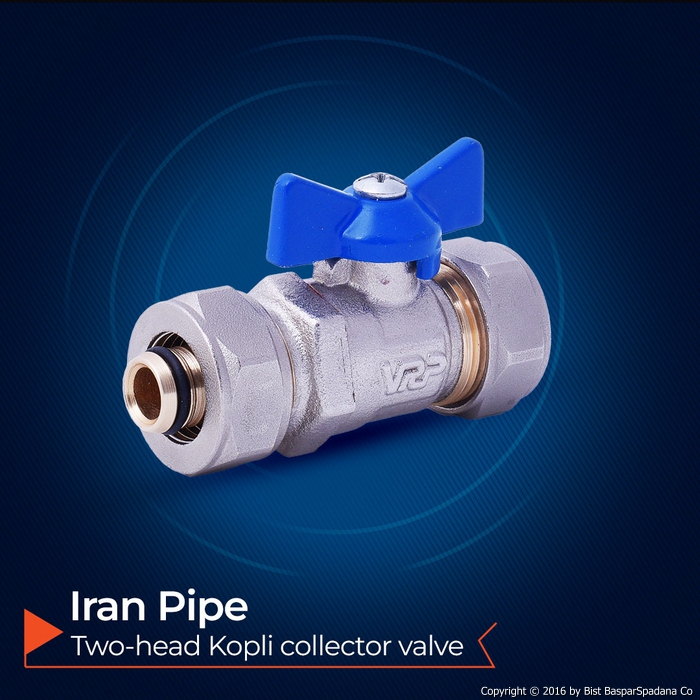

Two-head Kopli collector valve
The two-headed Kopli collector valve is made of high-quality brass with an internal thread in accordance with the standard and is designed for residential and commercial piping exposed inside or outside the building.

These types of valves have two O-rings in their path. On the pipe, there are two metal washers so that when connecting the pipe to the valve, this metal washer is placed behind the pipe and inside the nut and is fixed to the desired place. In this way, this washer no longer allows the nut to be released.
Note that first the nut and then the metal washer must be placed inside the pipe, and then the pipe must be inserted into the pipe joint to be able to install the washer and nut.
Collector valves are usually available in the market in sizes 16 and 20, which means that for building piping, you can use hot and cold water piping or building heating piping with 16 or 20 and 25 pipes or a combination of these two. do it Of course, using the 16 tube is a more common method due to its lower thickness and higher pressure.
